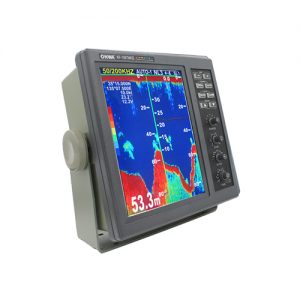

ONWA KF-1067 DF 2 KW

10.4″ TFT Color LCD High Power (1KW/2KW) Fish Finder

Daha Fazla

105,000.00₺

Açıklama
Değerlendirmeler (0)

Ürün Açıklaması

General

Display

10.4-inch Color TFT LCD

Echo Color

8 colors (including background color) according to echo intensity.
The background color is selectable from blue, light blue, white and black

Basic Range

Meters 5/10/20/40/80/150/300/600
Feet 15/30/60/120/200/400/1000/2000
Fathoms 3/5/10/20/40/80/150/300
Passi/Braza 3/5/10/30/50/100/200/350
*The basic ranges can be changed on the system menu.

Range Shift

Up to 300 meters (1000 feet,150 fathoms, 200 passi/braza)

Zoom Range

Times 2,3,4 and 5 ranges

Bottom Lock Expansion Range

5/10 meters, 10/20 feet, 2/5 fathoms , 2/5 passi/braza

Auto Mode

Automatic adjustment of range and gain

Display Mode

Single Frequency (50 kHz or 200 kHz Version):
Normal, Zoom and A-Scope
Dual Frequency (50 kHz and 200 kHz Version):
High Frequency (200 kHz), Low Frequency (50 kHz),
Dual (200 kHz and 50 kHz 1/2 display on each),
Zoom (200 kHz and 50 kHz zoom) and A-scope Display

Zoom Display

Marker Zoom, Bottom Zoom and Bottom-lock Expansion

Display Advance Speed

Lines/TX:Freeze, 1/8, 1/4, 1/2, 1/1, 2/1

TX Frequency

Single Frequency (50 kHz or 200 kHz) or
Dual Frequency (50 kHz and 200 kHz (alternately transmitted)) (Specify when ordering)

Power Output

1 kW or 2 kW (specify when ordering)

Pulse-length/TX rate

Display End Depth (m)	5	10	20	40	80	150	300	600
Pulse-Length (ms)	0.1	0.1	0.1	0.2	0.4	0.7	1.5	2.5
TX Rate(ms)	80	80	160	375	320	560	1.2	2.0

Interference Rejecter

Rejects unwanted signals by comparing last and present echoes in strength.

Alarm

Fish and Bottom alarms,
Temperature alarm (sensor required)

Input/Output Data

NMEA0183
Input: RMC, VTG
Output: SDDBT, SDDPT

Transducer

1KW
TGM60-50B-12L (50 kHz, with 12 meters cable )
TGM60-200B-12L (200 kHz, with 12 meters cable )
2KW
TGM60-50A-15L (50 kHz, with 15 meters cable )
TGM60-200A-12L (200 kHz, with 12 meters cable )
