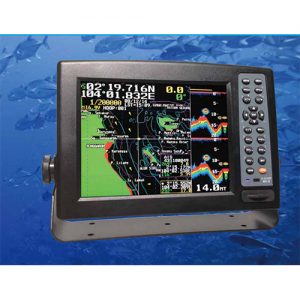

General
Display
10.4-inch Color TFT LCD, 800 x 600 pixels
Echo Color
8 colors or 8-level monochrome
Display Area
228.4 mm X 175.4 mm
Basic Range
Meters : 5/10/20/40/100/200/400/800
Feet : 15/30/60/120/300/600/1500/2500
Fathoms : 3/5/10/20/50/100/200/400
Default settings; it could be customized for use w/o range 3 and 6
Feet : 15/30/60/120/300/600/1500/2500
Fathoms : 3/5/10/20/50/100/200/400
Default settings; it could be customized for use w/o range 3 and 6
Accuracy
+/- 2.5% on any range
Minimum Range
1.5 m (200 KHz), 1.5 m (50 KHz)
Draft
Draft 0 to 30 m in 0.1 m steps, default 0 m
Pulse Repetition Rate (PRR)
Depth (m) | 5 | 10 | 20 | 40 | 80 | 150 | 200 | 300 | 600 |
Pulse-Length (ms) | 0.1 | 0.1 | 0.1 | 0.2 | 0.4 | 0.75 | 1 | 1.5 | 3 |
PRR (pulse/min) | 750 | 750 | 750 | 375 | 187.5 | 100 | 75 | 60 | 60 |
Display Mode
NAV : Basic echo presentation with the depth below transducer
DBS : Echo presentation with the depth below sea surface (or keel)
HISTRY : Historical Echo presentation with the depth
LOGBOOK : Echo presentation with the pop-up table showing
Time, Depth and L/L* data memorized at preset interval
OS DATA : Echo presentation with the pop-up table of present
navigational data; L/L*, course*, speed*, time, depth
HELP : Echo presentation with the help menu and note
MENU : Echo presentation with the user menu.
DBS : Echo presentation with the depth below sea surface (or keel)
HISTRY : Historical Echo presentation with the depth
LOGBOOK : Echo presentation with the pop-up table showing
Time, Depth and L/L* data memorized at preset interval
OS DATA : Echo presentation with the pop-up table of present
navigational data; L/L*, course*, speed*, time, depth
HELP : Echo presentation with the help menu and note
MENU : Echo presentation with the user menu.
Picture Advance Speed
Slow mode 15 minutes or more
Fast Mode Picture advance Range
Range (m): 5/10/20/40/100/200/400/800
Interval (min):1.8/1.8/1.8/8/8/20/30/30
Fast Mode Picture advance Range
Range (m): 5/10/20/40/100/200/400/800
Interval (min):1.8/1.8/1.8/8/8/20/30/30
User Setting
Gain, Range, Alarm, Draft, Brilliance, Dimmer, Color, Auto
Auto Set Mode
Gain, range and clutter will be automatically adjusted.
Alarm
Shallow water (default 20 m), Bottom lost, Power drop
Logbook Display
Depth, Internal clock, L/L* 1 hour at 5 sec Interval, 12 hours at
1 minute interval and 24 hours at 2 minutes interval.
*: External navigational sensor required.
1 minute interval and 24 hours at 2 minutes interval.
*: External navigational sensor required.
Transmit Frequency
50 kHz or 200 kHz, specify when ordering
Output Power
600 Wrms
Interface
Serial Input Data
IEC61162-1, current loop; 1 port
RMA: L/L, ground track speed, Track
RMC: L/L(GPS), ground track speed, Track, Time
GLL: L/L
GGA: L/L
VTG: Ground track speed,
Track (True/Magnetic selected on menu)
ZDA: Time
RMA: L/L, ground track speed, Track
RMC: L/L(GPS), ground track speed, Track, Time
GLL: L/L
GGA: L/L
VTG: Ground track speed,
Track (True/Magnetic selected on menu)
ZDA: Time
Serial Output Data
IEC61162-1, output period:1 sec.;3 outputs/1 port
SDDPT: Depth (m), Draft (m)
SDDBT: Depth (ft, m, fa) below transducer
SDDBS: Depth (ft, m, fa) below sea surface
SDDPT: Depth (m), Draft (m)
SDDBT: Depth (ft, m, fa) below transducer
SDDBS: Depth (ft, m, fa) below sea surface
Alarm (Depth, Power)
Contact closure signal
Power Supply
DC 11-40V : 3A Max
Environmental Conditions
Ambient Temperature
-15°C to +55°C
Relative Humidity
95% or less at 40°C
Waterproofing
Display unit: IPX5
EMC Emission
IEC 60945 Ver.3
Equipment List
Display unit
Quick Manual
Transducer (specify when ordering)
Standard Accessories Pack
Quick Manual
Transducer (specify when ordering)
Standard Accessories Pack
